Style DR5 Hydraulic Hose

类别:

其它信息

可用市场:

北美, 中美洲, 太平洋

描述

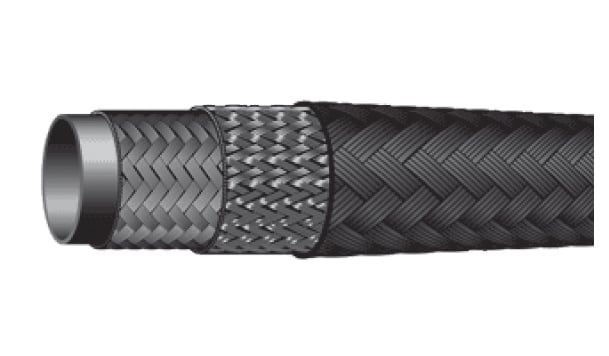

Designed for use as a high temperature, medium pressure hydraulic hose on material handling equipment, off-the-road equipment, machine tools and other air, water or oil service, the Dayco Style DR5 Hydraulic Hose features an oil-resistant synthetic rubber tube, an impregnated textile braid cover that is resistant to oil and mildew, with a single textile inner braid and single high-tensile steel wire braid reinforcement. The temperature range is from -40° F to +212° F (-40 °C to 100 °C) (300° F/149 °C intermittent). Sizes 4 through 16 temperature range is from -40° F to 300° F (-40 °C to 149 °C), while size 20 ranges from -40° F to +212° F (-40 °C to 100 °C).

This hose is recommended for use with coupling Styles DN and DC. Meets SAE 100R5, SAE J1402 Type All and DOT FMVSS-106.

Download

Hydraulics Thread Chart

Hydraulics Pressure Chart
