HT POWER Metric Timing Belt

Code Article: H5M, H8M, H14M Catégories : ,

Informations complémentaires

Marchés Disponibles:

Tous les Marchés

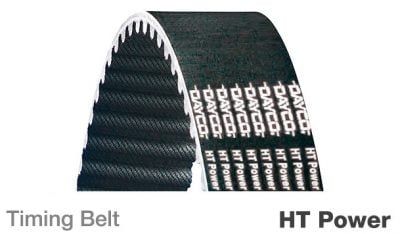

HT Power Timing Belt

Part Number Description: 1000H8M450
1000: Pitch length in mm
H: Profile (H=curvilinear High Torque Drive)
8M: Metric pitch (8 mm)
450: Width in mm

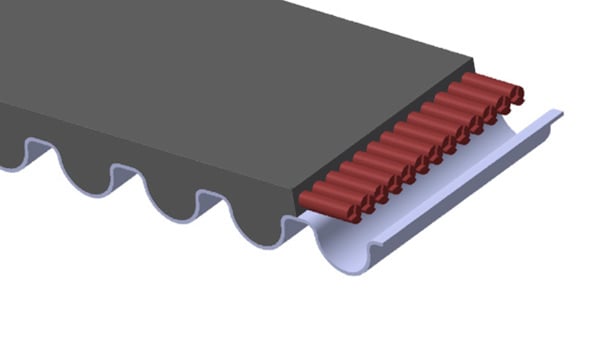

Features and Benefits:

Tension Cords: Glass fiber

  • Very high dimensional stability
  • High strength
  • Good flex durability

Body Compound: Chloroprene rubber

  • Good shear resistance
  • Oil and Heat resistance
  • Temperature Range: -20 To +100 °C / -4 To +212 °F

Tooth Fabric Cover: Nylon

  • Abrasion resistance
  • Wear resistance

Belt dimensions according to ISO 13050
Good Value Cost/Performance

Markets and Applications:

Suitable for all Industrial applications where increased power capacity is required compared to HT Power imperial
Pulley Standards: High Torque Drive curvilinear profile
