Industrial V-Belt Raw Edge
Part Number Description: XPA1200DR

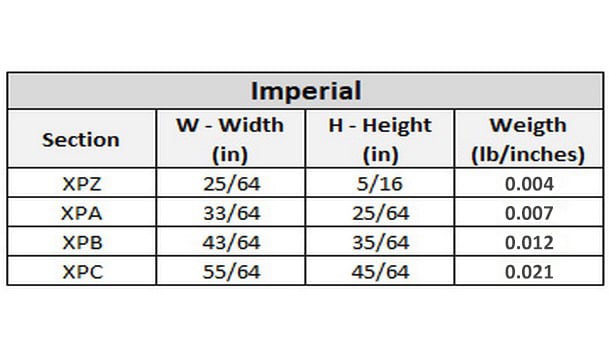

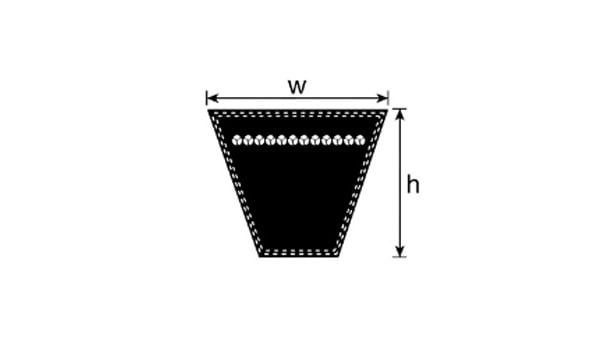

XPA: Profile (13mm X 10mm)
1200: Datum Length (mm)
DR: Drive Rite
Features and Benefits:
Fabric Cover: PET/Cotton to enhance flexibility
Polyester cord designed for high stability, low tension decay, enable resistance to overloads and shock loads.
Cogs profile engineered to improve bending fatigue, provide extra flexibility for smaller pulley and cooling effects.
Body compound fibers loaded made of CR rubber blend
- Very good abrasion resistance
- High Coefficient of friction (increased Power capacity vs. wrapped belt)
- Good oil and Heat resistance
- Temperature Range: -30°C To +90°C / -22°F To 194°F
- Static conductive ISO1813
RLT: Restricted length tolerance, manufactured with restricted tolerance for set matching
Markets and Applications:
Recommended for all Industrial applications (textile mills, fan, lathes, grinding machine, compressors, pumps, woods…), designed where space, weight and power capacity are critical.
Pulley Standards: DIN2211 – ISO 4183
