Style DR14 Hydraulic Hose


Informacje dodatkowe

Dostępne Rynki:

Ameryka Północna, Ameryka Środkowa, Oceania

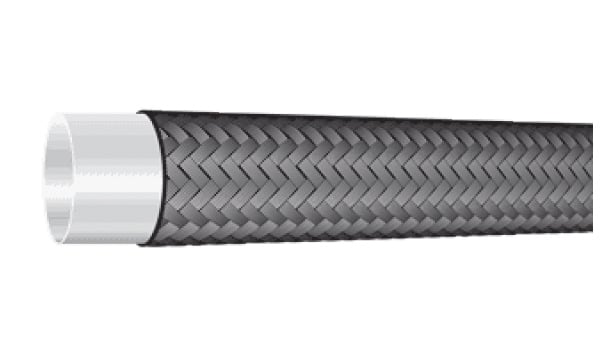

Designed for use with corrosive and/or high temperature fluids, but NOT recommended for fuel applications, the Dayco Style DR14 Specialty Hose features a white, PTFE tube. The cover consists of one braid of high-tensile stainless steel wire. The temperature range is from -65˚F to +450˚F (-54 °C to 233 °C). For steam, the maximum operating pressure is 200 PSI at +388˚F (198 ˚C).

This hose is recommended for use with coupling Style 91N. Meets SAE 100R14A.

Note: May be used from the air compressor to the air reservoir on truck air brake applications.
