Industrial V-Belt Raw Edge
Part Number Description: XPA1200GL

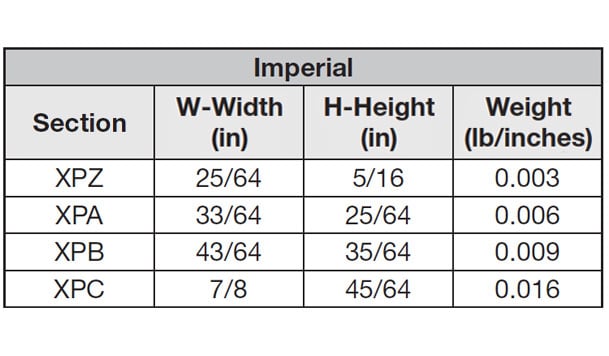

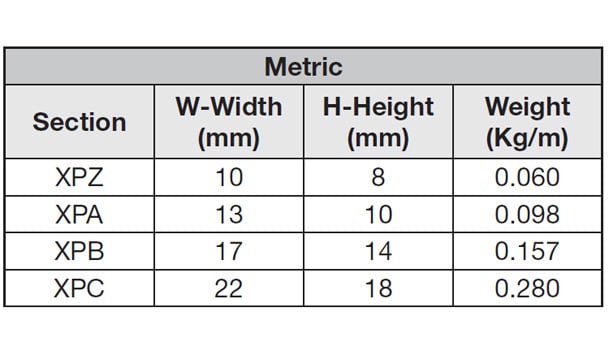

XPA: Profile (13mm X 10mm)
1200: Datum Length (mm)
GL: Gold Label
Features and Benefits:
Back fabric: PET/Cotton to enhance flexibility
Polyester cord designed for improved performance: high stability, very low tension decay, enable resistance to overloads and shock loads, improved durability, reduced maintenance.
Cogs profile engineered to improve bending fatigue, provide extra flexibility for smaller pulley and cooling effects.
Body compound fibers loaded made of EPDM rubber blend
- Good abrasion resistance
- High Coefficient of friction (increased Power capacity vs. wrapped belt)
- Good Ozone resistance
- Very good Heat resistance
- Temperature Range: -40 To +150 °C / -40 To +302 °F
- Static conductive ISO1813
RLT: Restricted length tolerance, manufactured with restricted tolerance for set matching
Designed for OEMs
Markets and Applications:
Recommended for all Industrial applications (textile mills, fan, lathes, grinding machine, compressors, pumps…), in particular where temperature, power capacity, space and weight are critical.
Pulley Standards: DIN2211 – ISO 4183
