HT POWER Imperial Timing Belt

Beschreibung

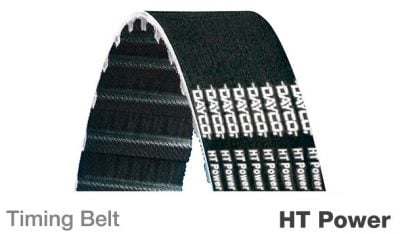

HT Power Timing Belt

Part Number Description: 100XL1890
100: Pitch length in tenths of an inch (100=10”)
XL: Pitch (XL=Extra Light=0.2”)
1890: Width in hundredths of an inch (1890=18.90”)

Features and Benefits:

Tension Cords: Glass fiber

• Very high dimensional stability
• High strength
• Good flex durability

Body Compound: Chloroprene rubber

• Good shear resistance
• Oil and Heat resistance
• Temperature Range: -20 To +100 °C / -4 To +212 °F

Tooth Fabric Cover: Nylon

• Abrasion resistance
• Wear resistance

Belt dimensions according to ISO 5296
Best Value Cost/Performance

Markets and Applications:

Suitable for all Industrial applications
Pulley Standards: ISO 5294
