Heavy Duty Air Brake Hose

Category:

Product Description

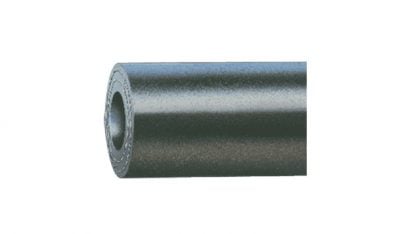

The Dayco Air Brake Hose features a high quality, smooth rubber cover that is weather, abrasion, and ozone resistant. Designed for use on truck and bus compressed air brake systems, the hose is reinforced  by four textile spirals for a rated minimum burst pressure of 900 psi (225 psi maximum working pressure) and possesses a seamless synthetic inner tube with a temperature rating of –40˚F (-40˚C) to +212˚F (+93˚C). This hose meets SAE J1402 and DOT FMVSS 106, Type A requirements for 3/8” and 1/2” SP dimension hose.

Special Notes: Air Brake Hose assemblies must be identified by the assembler per DOT FMVSS 571.106 if used in motor vehicle air brake applications

Additional information

Available Markets

North America, Central America, South America, Asia, Pacific
